Utility Mapping Surveys

---

 At Emerald Surveys, we deliver precise and reliable utility mapping surveys to help you locate, identify, and assess underground services before excavation or development begins. Our surveys significantly reduce the risk of costly delays, damage, and health & safety incidents by providing a clear picture of subsurface infrastructure.

Using a combination of Electromagnetic Location (EML) and Ground Penetrating Radar (GPR), we detect and map buried utilities such as electricity, gas, water, telecoms, foul and surface water drainage, and more. All results are referenced to topographical data and can be provided in 2D or 3D CAD formats, fully georeferenced.

Whether you're planning groundwork, road construction, infrastructure upgrades, or site investigations, our utility mapping services support safe, informed, and compliant project delivery.

Our Utility Surveys Cover:

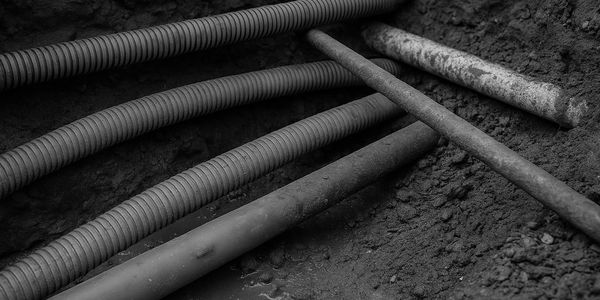

• Power and telecoms cabling

• Gas and water mains

• Foul and surface water drainage

• Redundant/unknown services

• Service entry points to buildings

• Depth estimations where possible


Why Choose Emerald Surveys for Utility Mapping?

• PAS 128 methodology available

• Combined topographical & utility survey options

• High-accuracy, non-intrusive detection methods

• Experienced survey teams

• Clear, CAD-ready deliverables (DWG & PDF)


Get in touch today to discuss your requirements or request a tailored quotation.
